Gateways

Gateways

We provide multi-protocol IoT Gateways for enabling IoT communication, usually device-to-device or device-to-cloud communications.

Sensors and Controllers

Sensors and Controllers

Smart Sensors and Controllers to complete the IoT ecosystem

Energy Management

Energy Management

Smart meters to visualize and manage the energy consumption.

Smart Lighting & Switch Boards

Smart Lighting & Switch Boards

Smart Lighting and Switch Boards to provide control remotely.

Gateways

We provide multi-protocol IoT Gateways for enabling IoT communication, usually device-to-device or device-to-cloud communications.
computing gateway
Multi-Protocol Edge Computing Gateway

It is a Edge Computing IoT Smart Home gateway.

Technical Specifications

Power supply: 5V DC, 3.0A
Operating conditions: 0~40o C, 0%~90% RH
Supported protocols: Wi-Fi (2.4 GHz and 5 GHz), LTE, Z-Wave Plus, BT, BLE, Zigbee, and IR
Z-Wave radio frequency: 868.42MHz (EU) 908.42MHz (US) 921.42 MHz (ANZ)
Battery backup: Up to 2 hours
On-board sensors: Motion sensor, Temperature sensor, and Light sensor

Smart home gateway
Smart Home Gateway

It is a multi-protocol Smart Home Gateway.

Technical Specifications

Power supply: 5V DC, 1.2A
Operating conditions: 0~40o C, 0%~90% RH
Supported protocol: Wi-Fi (2.4 GHz Only), Z-Wave Plus, BLE, Zigbee & IR
Battery backup: 8 hours

Smart home gateway
Infrared Blaster

It is a universal remote that can combine and control Wi-Fi devices, BLE devices and IR remote controls.

Technical Specifications

Built-in sensors : Temperature and Illuminance
Protocols supported: Wi-Fi (2.4 GHz Only), BLE and IR (Infrared)
Effective range/effective distance of infrared Ray: 360 degrees, 15meters
Input: 100V ~ 240V AC, 50/60 Hz, 0.25 A max
Output: 5V DC, 1.2A
Operating temperature: 0o C to 40o C
Dimensions (W x H x D): 65mm x 65mm x 18mm
Amazon alexa integration: Yes
Google assistant integration: Yes

Smart home gateway
Home Automation Gateway

It is a Smart Home Automation Gateway that works with over 110+ devices.

Technical Specifications

Input: 100 ~ 240V, 50/60Hz, 0.25A max
Output: 5V DC, 1.5A
Protocols supported: Wi-Fi (2.4 GHz Only), BLE, Zigbee HA 3.0 and IR (Infrared) Infrared transmission range: Upto 15 meters
Range: Wi-Fi upto 30 meters, Zigbee upto 100 meters, BLE Up to 20 meters
Operating temperature: 0o C to 40o C
Dimensions (W x H x D): 99.05mm x 99.05mm x 19.50mm
Amazon alexa integration: Yes
Google assistant integration: Yes

Sensors and Controllers

Smart Sensors and Controllers to complete the IoT ecosystem.
computing gateway
Wireless Motion Sensor

Motion Sensor detects human motion at the location it is installed.

Technical Specifications

Power supply: 1xCR123A,3V battery / USB
Radio protocol: Z-Wave Plus
Wireless range: upto 30 Meters indoor

Smart home gateway
Door Sensor

It senses the Open and Close of any Door / Window to which it is fixed.

Technical Specifications

Power supply: 2xAAA batteries
Radio protocol: Z-Wave Plus
Wireless range: upto 30 meters indoor
For Indoor use only.

Smart home gateway
Single In-Wall Relay

It is used to command and control (on/off/dim) any incandescent bulbs, dimmable LEDs and dimmable fluorescents. It can report instantaneous power consumption and accumulated energy usage.

Technical Specifications

Input ratings: 110 - 300V AC (Single Phase), 50/60 Hz
Output ratings: 110 - 300V AC (Single Phase), 50/60 Hz
Standby power: < 1.5W (in AP mode)
Maximum withstand voltage: < 300V AC (L-N) continuous
Number of load channels: 1 (One)
Maximum load rating: 16A
Wireless frequency: Wi-Fi (2.4 GHz)
Overvoltage load cut-off: 300V
Under voltage load cut-off: 90V
Overload cut-off: > 16A
Operating temperature: 0oC to 50oC.
Storage temperature: -20oC to 70oC
Relative humidity: < 90%
Dimensions (W x H x D): 55.3mm x 48.5mm x 17.6mm

Smart home gateway
Dual In-Wall Relay

It is used to command and control (on/off/dim) any incandescent bulbs, dimmable LEDs and dimmable fluorescents. It can report instantaneous power consumption and accumulated energy usage.

Technical Specifications

Input ratings: 110 - 300 V AC (Single Phase), 50/60 Hz
Output ratings: 110 - 300 V AC (Single Phase), 50/60 Hz
Standby power: < 1.5 W (in AP mode)
Maximum withstand voltage: < 300V AC (L-N) continuous
Number of load channels: 2 (Two)
Maximum load rating: 5A each channel. 10A total
Wireless frequency: Wi-Fi (2.4 GHz)
Overvoltage load cut-off: 300V
Undervoltage load cut-off: 90V
Overload cut-off: > 10A (Two channels)
Operating temperature: 0oC to 50oC.
Storage temperature: -20oC to 70oC
Relative humidity: < 90%
Dimensions (W x H x D): 55.3mm x 48.5mm x 17.6mm

Smart home gateway
Siren

Siren alerts the owners in case of a security breach or a safety concern.

Technical Specifications

Power supply: DC 5 V @ 1.0 ampere adaptor
Backup power: 3 x AA batteries (Rechargeable)
Radio protocol: Z-Wave Plus
Wireless range: upto 30 meters indoor
Maximum volume: +110 dB

Smart home gateway
Temperature and Humidity Sensor

Temperature and Humidity Sensor can be used to monitor the temperature and humidity of the environment, and also can work in conjunction with other devices to design and implement smart application scenarios.

Technical Specifications

Power supply: 1*CR2032 (included)
Relative humidity sensor: ± 3% RH (max)
High accuracy temperature sensor: ± 0.3o C (max)
0 to 100% RH operating range
Up to -40 to +85o C operating range
Size: 39x39x12mm

Smart home gateway
Smart Power Strip

The Smart Connect Strip is multipath of smart plug. It can be controlled by an App and works in conjunction with other devices to design and implement smart application scenarios.

Technical Specifications

Working voltage: 240V AC
Support max power: 10A, 2400W
USB max: 5V total, 2100mA
Security: Mac encryption; WEP /WAPI/TKIP/AES
WiFi standard: 11b/g/n

Energy management

Smart meters to visualize and manage the energy consumption.
computing gateway
3-phase Energy Meter

A Smart Energy Meter helps in energy visualization and optimization at the “grid edge”. Through the power of AI and ML, NILM (Non-Intrusive Load Monitoring) is achieved with the help of which the user can get insights into Device Level Energy usage, set budgets and optimize their energy usage.

Technical Specifications

Power supply: 85 - 480V AC (Single Phase / Three Phase), 50/60Hz
Energy meter configuration:
Single phase: 1-phase, 2-wire, active neutral
Two phase: 2-phase, 3-wire, active neutral
Three phase: 3-phase, 4-wire, active neutral
Accuracy: Class 2.0 (Active Energy)
class 2.0 (Apparent Energy) Power consumption: < 2.0W
Maximum withstand voltage: 528V AC
Maximum impulse withstand: ± 8kV (Air), ± 4kV (contact)
Max. current rating: 60A, 200A, 600A
Supported protocol: Wi-Fi (2.4 GHz) and BLE provisioning
Temperature: Operating: 0o - 50o C. Storage: -20o - 70o C

Smart home gateway
Smart Socket (16A)

Wi-Fi Smart Socket is used to control lights, devices and appliances and monitor their energy consumption from anywhere.

Technical Specifications

Power supply: 100 - 240 V AC 50/60 Hz
Maximum load: 16 Ampere
Radio protocol: WiFi
Range: upto 30 meters indoor

Smart home gateway
Smart Socket (AU)

Wi-Fi Smart Socket is used to control lights, devices and appliances and monitor their energy consumption from anywhere.

Technical Specifications

Operating voltage & frequency: 180 ~ 290 V AC 50Hz
Load current: 10 A (Max)
Working temperature and relative humidity: 8o - 50o C; RH≤80%
Working temperature and relative humidity: -10o - 70o C ; RH≤80%
Radio technology: IEEE 802.11 b/g/n
Wireless frequency: Wi-Fi (2.4 GHz)
Dimensions (W x H x D): 43mmx 79mmx 57.4mm

Smart home gateway
Smart Socket (EU)

Wi-Fi Smart Socket is used to control lights, devices and appliances and monitor their energy consumption from anywhere.

Technical Specifications

Operating voltage & frequency: 180 ~ 290 V AC 50Hz
Load current: 10 A (Max)
Working temperature and relative humidity: 8o - 50oC; RH≤80%
Working temperature and relative humidity: -10o - 70oC ; RH≤80%
Radio technology: IEEE 802.11 b/g/n
Wireless frequency: Wi-Fi (2.4 GHz)
Dimensions (W x H x D): 55.5mm x 55.5mm x 71.7mm

Smart home gateway

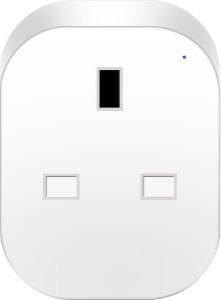

Smart Socket (UK)

Wi-Fi Smart Socket is used to control lights, devices and appliances and monitor their energy consumption from anywhere.

Technical Specifications

Operating voltage & frequency: 180 ~ 290 V AC 50Hz
Load current: 10 A (Max)
Working temperature and relative humidity: 8o - 50o C; RH≤80%
Working temperature and relative humidity: -10o - 70o C ; RH≤80%
Radio technology: IEEE 802.11 b/g/n
Wireless frequency: Wi-Fi (2.4 GHz)
Dimensions (W x H x D): 55.5mm x 55.5mm x 71.7mm

Smart home gateway
Dual Smart Socket (USA)

Wi-Fi Smart Socket is used to control lights, devices and appliances and monitor their energy consumption from anywhere.

Technical Specifications

Operating voltage & frequency: 180 ~ 290 V AC 50Hz
Number of outlets: 2 (Two)
Load current: 10 A (Max)
Working temperature and relative humidity: 8o - 50o C; RH≤80%
Working temperature and relative humidity: -10o - 70o C ; RH≤80%
Radio technology: IEEE 802.11 b/g/n
Wireless frequency: Wi-Fi (2.4 GHz)
Dimensions (W x H x D): 119.5 x 30 x 50 (with metal plug)

Smart Lighting and Switch Boards

Smart Lighting and Switch Boards to provide control remotely.
computing gateway
Touch Switch Boards

Touch Switch Boards allows control from anywhere via app or voice assistants and provide power monitoring to measure energy use of the connected appliances.

Technical Specifications

Working voltage: 240V AC
Max load: 500W (150W LED per gang)
Terminals: 20mm2 suitable for 2.5mm cables.
Requires neutral for operation (3 wires design).
Security: Mac encryption; WEP /WAPI/TKIP/AES
WiFi standard: 11b/g/n

Smart home gateway
Light Bulb (RGBW)

This allows you to control the lights in your home wirelessly.

Technical Specifications

Working voltage: 240V AC (DIY)
Wattage: 9W
Lumens @3000K: 800lm
Beam angle: 220 degrees
CRI: >82
Security: Mac encryption; WEP /WAPI/TKIP/AES
WiFi standard: 11b/g/n.

Smart home gateway
Ceiling Downlights LED Lights

This allows the control from anywhere via app or voice assistants.

Technical Specifications

Working voltage: 240V AC
Wattage: 9W
Lumens @3000K: 700lm
Lumens @4000K: 750lm
Lumens @5000K: 750lm
IP rating: IP44 (Front only) Flex plug: 2-pin, 1m length Security: Mac encryption; WEP /WAPI/TKIP/AES WiFi standard: 11b/g/n

Smart home gateway
Battens

Flicker free and long lasting, Battens are an elegant alternative to traditional fluorescent batten fittings for commercial interiors, corridors, warehousing, garage and indoor storage areas.

Technical Specifications

STYLE: Slimline LED
COLOUR/S: White
WATTAGE: 35W
LUMENS: 3500lm
COLOUR TEMP: 4200K Cool White
CRI: >80
IP RATING: IP20 Indoor only
